Vought V-173 / XF5U-1
"Flying Flapjack" or "Flying Pancake"

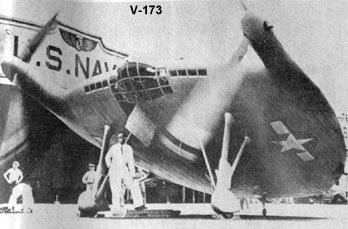

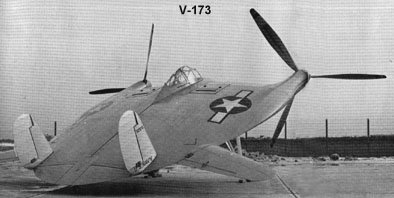

                      front quarter view V-173 rear quarter

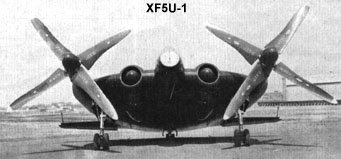

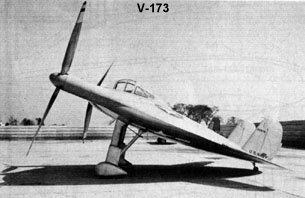

                      view V-173 side view XF5U-1 front view XF5U-1 rear view

One of the most unusual aircraft ever designed for the U.S. Navy was the Chance Vought V-173, also known as the Zimmerman "Flying Pancake". It was a prototype "proof of concept" aircraft that lacked wings, instead relying on its flat circular body to provide the lifting surface. This multi-million dollar project nearly became the first V/STOL (vertical takeoff and landing) fighter. The V-173 blueprints were shown to the Navy in 1939, with wind tunnel tests on full scale models being done in 1940-41. In January 1942 BuAer requested the proposal for two prototype airplanes of an experimental version of the V-173, known as the VS-135. This version had more powerful engines and was given the military designation XF5U-1. Flight testing of the V-173 went on through 1942 and 1943, resulting in reports of "flying saucers" from surprised Connecticut locals. Mock-ups of the XF5U-1 were done in the summer of 1943, but due to Vought's preoccupation with the Corsair and Kingfisher, the program proceeded slowly during the war. The arrival of the jet age saw the cancellation of the XF5U-1 contract by the Navy in March 1947, despite the fact that the aircraft was due to take its first test flight later that year. The XF5U-1 prototype was scrapped, though the V-173 prototype was saved and was given to the Smithsonian. To this day the V-173 / XF5U-1 project remains one of the more interesting anecdotes in aviation history.

Additional information on this aircraft can be found at Wikipedia here.
(updated February 2009)

Vought V-173

Type:           experimental prototype (Fighter)
Crew:           1, Pilot
Armament:       none

        Length:         26' 8"
        Height:         12' 11"
        Width:       	23' 4"
        Gross Weight:   2,258 lbs

        No. of Engines: 2
        Powerplant:     Continental A-80
        Horsepower      80 hp each
	Prop diameter:	16' 6"

        Range:          limited (20 gal. of fuel)
        Max Speed:      138 mph sea level
        Climb:          to 5000 ft in 7 min


Vought XF5U-1

Type:           Fighter
Crew:           1, Pilot
Armament:       six .50 cal machine guns
		or four 20mm cannon
		or two 1000-lb. bombs

        Length:         28' 7.5"
        Height:         14' 9"
        Width:       	32' 6"
        Empty Weight:   n/a
        Gross Weight:   14550 lbs
        Max Weight:     n/a

        No. of Engines: 2
        Powerplant:     Pratt & Whitney R-2000-7
        Horsepower      1600 hp each
	Prop diameter:	16'

        Range:          910 miles
        Max Speed:      504 mph at 20,000 ft.
        Climb:          3000 ft/min at sea level
        Ceiling:        n/a
